Professional equipment for wildland firefighters
Tool carrier structure for Pickup (Sinple cabin) 1Tool carrier structure for Pickup (Sinple cabin) 2Tool carrier structure for Pickup (Sinple cabin) 3Tool carrier structure for Pickup (Sinple cabin) 4

Tool carrier structure for Pickup (Sinple cabin)

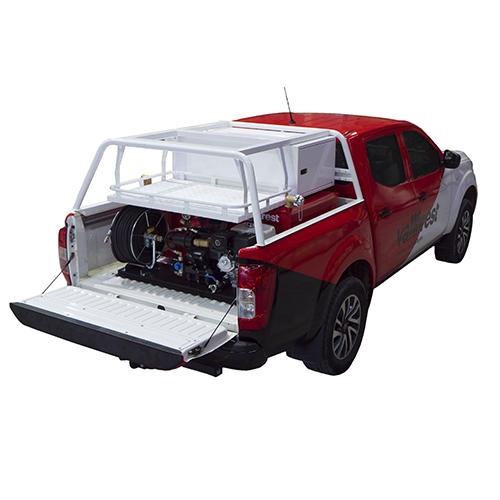

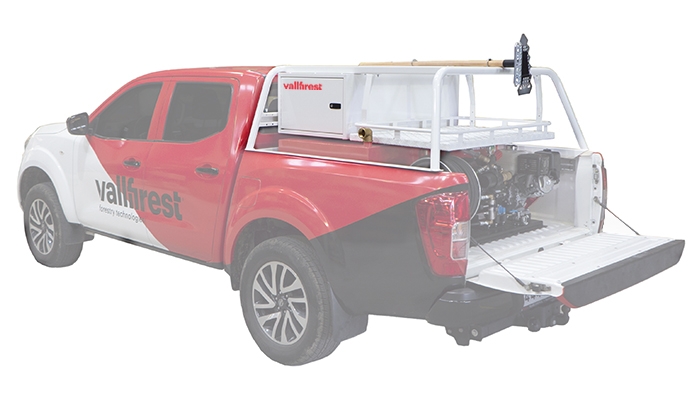

Multifunction extinguisher kit designed for pick-up vehicles.

Read More
These kits are compatible with all pick-up type vehicles on the market, regardless of manufacturer or model. The dimensions of the kit are universal and easy to assemble.

($3,050.00 taxes not included)
This product is not available

Thanks to the structure for transporting tools, we improve the capacities of these vehicles by adding to the motor-pump kits: manual tools, drip torches, chainsaws, water tank bags, attack bags ... All perfectly in tidy and stored in the equipment box and tool tray.

The combination of the kit with the structure increases the versatility of the vehicle for different uses. As the motor pump kit is independent of the structure of the tools and drawers, they can be assembled independently according to the use of the vehicle in each season of the year.

Características del kit de extinción:

  • Honda / KOHLER 9HP engine.
  • High pressure pump with 4 membranes 40 bar pressure 60 l / min.
  • Quick attack hose reel with 50 meters of rubber hose up to 80 bar.
  • T-key for filling and emptying.
  • Pressure controller with barometer and distribution valve.
  • T-shaped 450 liter tank, in 2 mm stainless steel, manufactured in 2 whole pieces, with 2 flow-breakers inside, color of your choice or INOX.
  • High pressure lance with baton or diffused jet function.
  • 5 meter drain socket.
  • Top charging connection for supply vehicles.
  • Weight: 157 Kg.

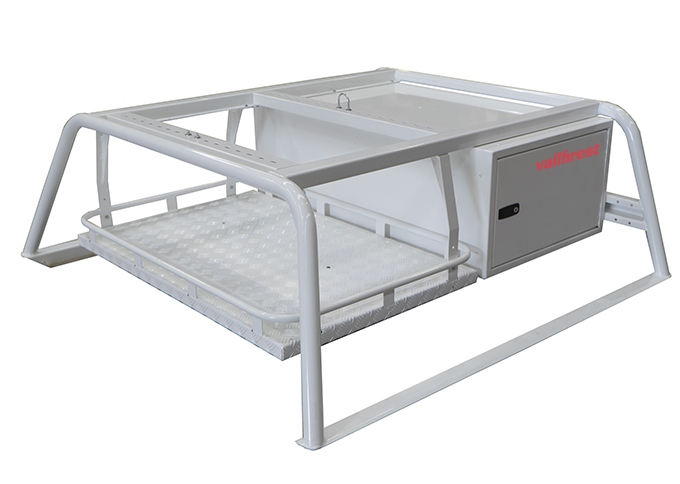

Features of the tool structure:

  • Simple Roll Bar structure. The maximum dimensions are those of the vehicle chassis, not exceeding neither the height nor the width.
  • Box for PPE with two side doors and locks, made of 2 mm stainless steel.
  • Non-slip retractable aluminum equipment tray and handle.
  • Dynamic upper tool holder according to the dimensions of the tools made of stainless steel.
  • Weight: 72 Kg.
  • With the possibility of mounting a centrifugal pump of 16 bar at 248 l / min. with reel for 50 m of 25 mm hose.
  • We manufacture custom tanks and adapt them as needed, for single or double cab vehicles.

* For orders of more than one unit, see our discounts.
